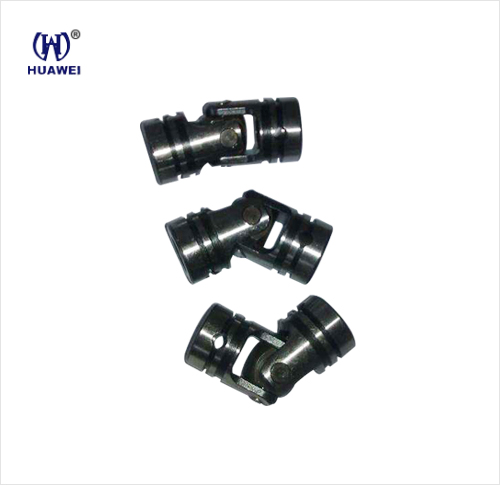

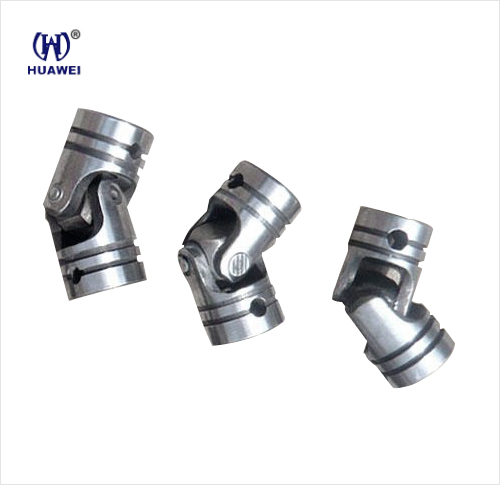

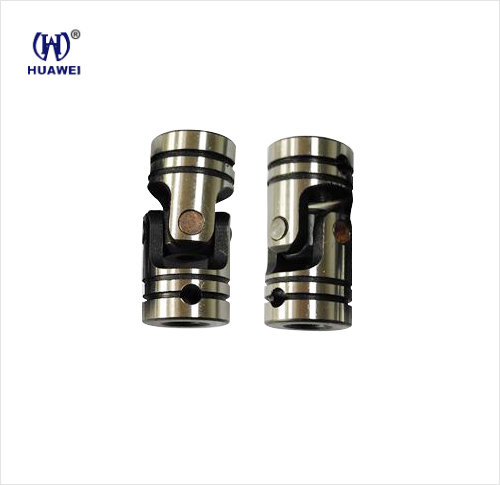

卡簧銷萬向節
| 型號規格 |
?d |
?D |
L WSD |
L3 WS |
M 頂絲 |
H 鍵寬 |
C |
L1 |
L2 WS |
扭矩 N/m |
KG WSD |
KG WS |
| WSD |
WS |
| 6*16*42 |
6*16*75 |
6 |
16 |
42 |
75 |
5 |
|
12 |
21 |
33 |
11 |
0.05 |
0.08 |
| 8*16*42 |
8*16*75 |
8 |
16 |
42 |
75 |
5 |
|
12 |
21 |
33 |
11 |
0.05 |
0.08 |
| 10*20*45 |
10*20*82 |
10 |
20 |
45 |
82 |
5 |
|
12 |
22.5 |
37 |
22 |
0.07 |
0.13 |
| 12*24*51 |
12*24*95 |
12 |
24 |
51 |
95 |
6 |
4 |
13 |
25.5 |
44 |
43 |
0.11 |
0.2 |
| 14*28*70 |
14*28*115 |
14 |
28 |
70 |
115 |
6 |
5 |
20 |
35 |
45 |
55 |
0.22 |
0.34 |
| 16*32*85 |
16*32*148 |
16 |
32 |
85 |
148 |
6 |
5 |
26 |
42.5 |
63 |
67 |
0.36 |
0.61 |
| 18*32*85 |
18*32*148 |
18 |
32 |
85 |
148 |
6 |
6 |
26 |
42.5 |
63 |
67 |
0.35 |
0.6 |
| 20*32*85 |
20*32*148 |
20 |
32 |
85 |
148 |
6 |
6 |
26 |
42.5 |
63 |
67 |
0.32 |
0.57 |
| 22*32*85 |
22*32*148 |
22 |
32 |
85 |
148 |
6 |
6 |
26 |
42.5 |
63 |
67 |
0.3 |
0.5 |
| 25*49*108 |
25*49*170 |
25 |
49 |
108 |
170 |
8 |
8 |
29 |
54 |
62 |
260 |
1.05 |
1.6 |
| 28*49*108 |
28*49*170 |
28 |
49 |
108 |
170 |
8 |
8 |
29 |
54 |
62 |
260 |
1 |
1.55 |
| 30*49*108 |
30*49*170 |
30 |
49 |
108 |
170 |
8 |
8 |
29 |
54 |
62 |
260 |
0.95 |
1.52 |
| 30*58*125 |
|
30 |
58 |
125 |
|
8 |
8 |
34 |
62.5 |
|
510 |
1.65 |
|
| 35*58*140 |
|
35 |
58 |
140 |
|
8 |
10 |
42 |
70 |
|
550 |
1.72 |
|
